GT Light
For light air pollution caused by oil, soluble oils and general cooling lubricants.
GT® 5L
Nominal volume flow in m³/h
Power in kW max.
Drive type
Connection V | Hz | phases
L x W x H in mm
Weight in kg
Total filter surface in m²
500
0.36
regulated
208/240 | 50/60 | 1
451 x 821 x 1062
85
31.7/61.3*

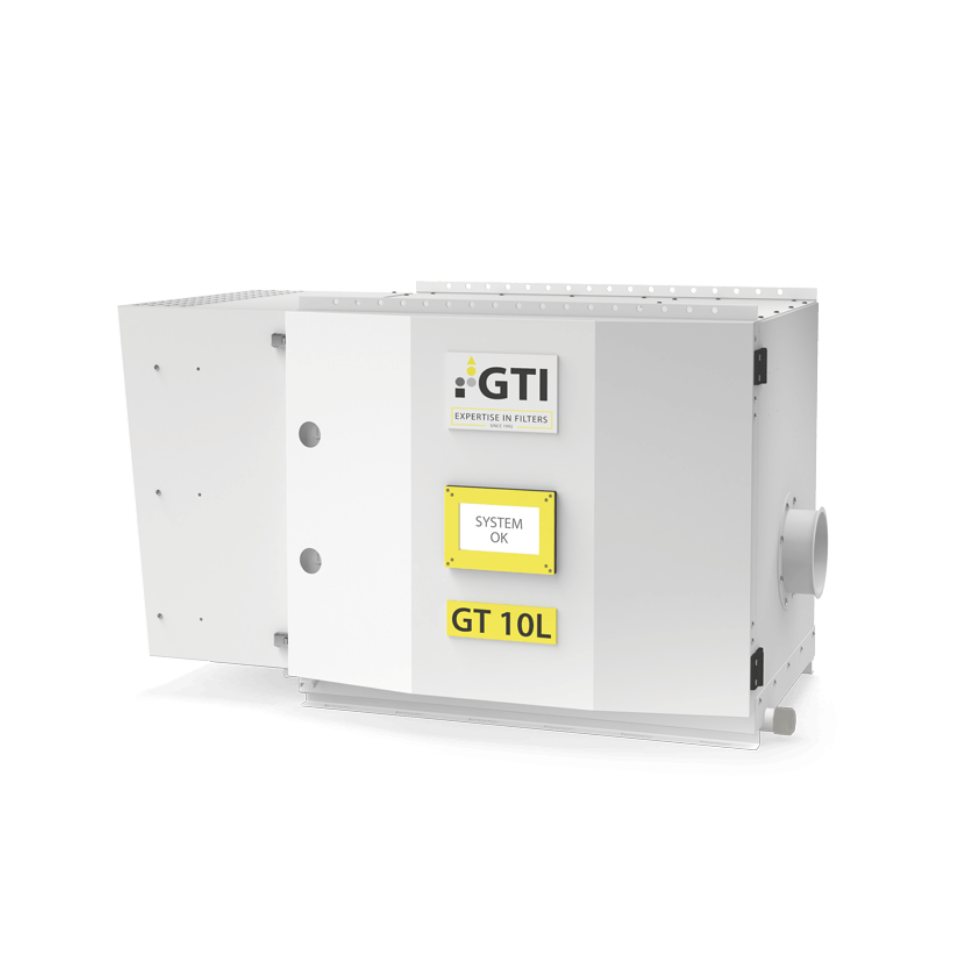

GT® 10L
Nominal volume flow in m³/h
Power in kW max.
Drive type
Connection V | Hz | phases
L x W x H in mm
Weight in kg
Total filter surface in m²
1000
0.5
regulated
200/277 | 50/60 | 1
750x 1338 x 827
170
25.2/42.3*

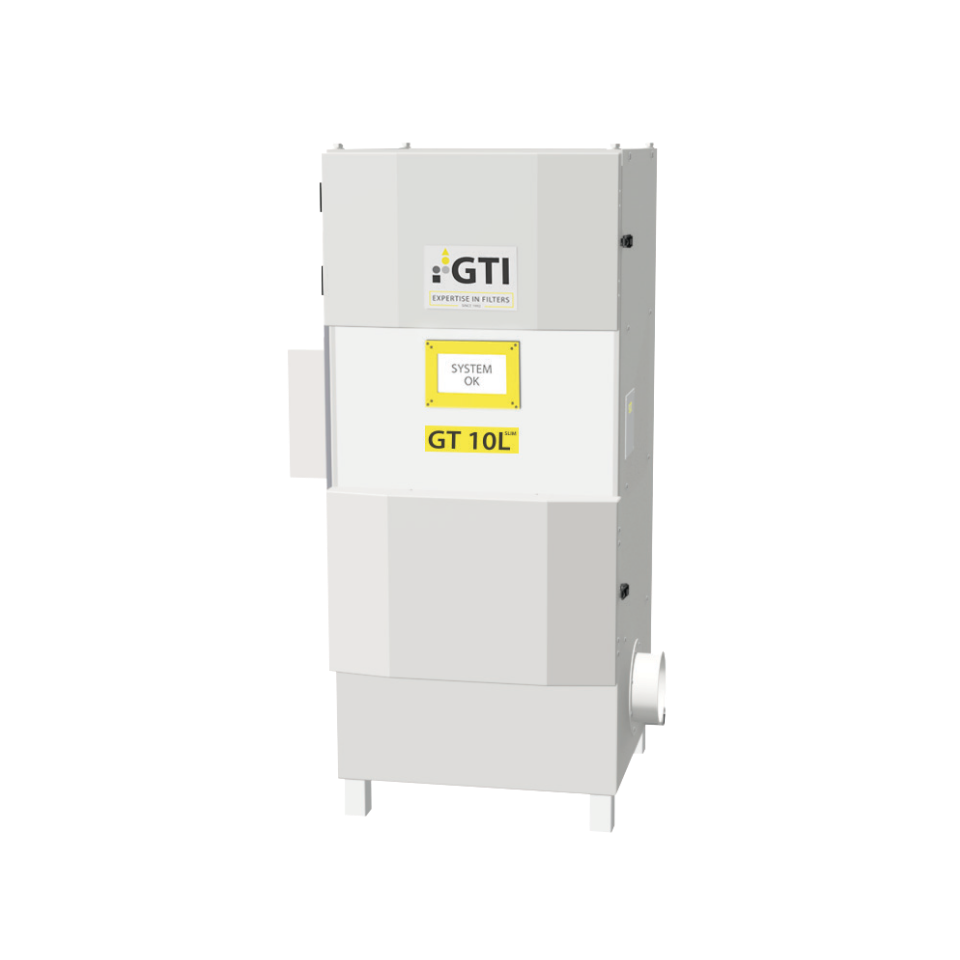

GT® 10L Slim
Nominal volume flow in m³/h
Power in kW max.
Drive type
Connection V | Hz | phases
L x W x H in mm
Weight in kg
Total filter surface in m²
2000
2.2
regulated
380/480 | 50/60 | 3
697 x 857 x 1505
170
31.2/61.5*
GT® 20L
Nominal volume flow in m³/h
Power in kW max.
Drive type
Connection V | Hz | phases
L x W x H in mm
Weight in kg
Total filter surface in m²
2000
2.2
regulated
380/480 | 50/60 | 3
699 x 854 x 1910
202
31.7/61.3*
GT® 20L-C
Nominal volume flow in m³/h
Power in kW max.
Drive type
Connection V | Hz | phases
L x W x H in mm
Weight in kg
Total filter surface in m²
2000
2.2
regulated
380/480 | 50/60 | 3
765 x 1106 x 1040
180
25.2/42.3*
GT® 40L
Nominal volume flow in m³/h
Power in kW max.
Drive type
Connection V | Hz | phases
L x W x H in mm
Weight in kg
Total filter surface in m²
4000
3.7
regulated
380/480 | 50/60 | 3451 x
1374 x 857 x 2283
355
63.4/108*
GT Light - Low level Pollution
Particle sizes measuring between 1 and 10 μm.
Visible on dispersion.Liquid and solid particles in the aerosol range.
Occurs when using cooling lubricants containing pure oil and soluble oils (coolants).
Occurs at moderate machining speeds and with low pressure of cooling lubricants.
Innovative air filtration
Filtering devices have to meet multi-layered requirements in the manufacturing process. It’s all about process reliability, product quality and workplace safety. In terms of design, function and performance, the innovative GT® air filtration units – GT® Light and GT® Heavy – stand for permanently effective and economical exhaust air filtration. Virtually maintenance-free and with guaranteed separation performance in space and time.
Areas of Application
All industries that release hazardous substances in the form of gases, vapors, mists and fumes in manufacturing processes that cannot be avoided due to the nature of the process. These include machining, forming, grinding and heat treatment.
